Different Positions of Welding: A Guide to Welding Positions

You’ll work with four basic welding positions: flat (1G/1F), horizontal (2G/2F), vertical (3G/3F), and overhead (4G/4F). Each demands distinct control over the weld pool and bead consistency.

Gravity impacts molten metal differently across these positions, requiring adjustments in torch angle, travel speed, and heat input.

Starting with flat welding builds essential skills before tackling the more challenging vertical and overhead positions.

Understanding these fundamentals prepares you to handle complex pipe welding situations and advanced certifications.

Key Takeaways

Welding positions include flat (1G/1F), horizontal (2G/2F), vertical (3G/3F), and overhead (4G/4F) with groove and fillet types.
Flat position offers optimal puddle control and productivity, making it ideal for beginners and foundational training.
Gravity affects weld quality differently; vertical-up requires fighting gravity, while overhead welding risks defects like slag inclusion.
Heat and power settings are reduced by 10–15% in vertical and overhead welding to control puddle fluidity and prevent sagging.
Pipe welding positions 5G and 6G require advanced skills, with 6G combining multiple positions and considered highly challenging.

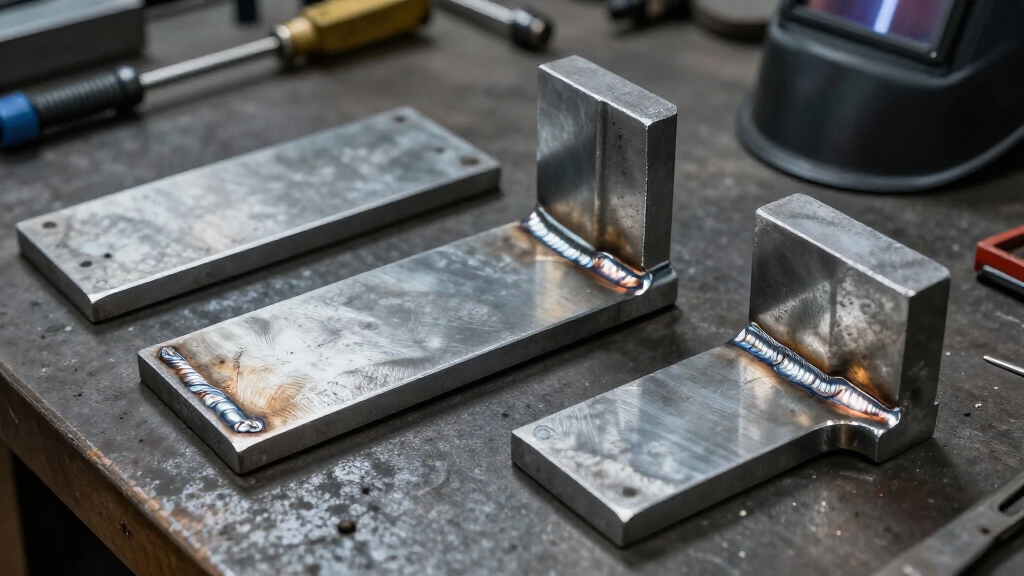

Overview of the Four Basic Welding Positions and Codes

Although welding can be performed in various orientations, you’ll find that the four basic positions—flat, horizontal, vertical, and overhead—form the foundation for most welding work.

Each position uses standardized codes: 1G/1F for flat, 2G/2F for horizontal, 3G/3F for vertical, and 4G/4F for overhead welds, distinguishing groove and fillet types.

Flat position offers ideal puddle control and productivity. Horizontal demands steady torch angles due to sagging metal.

Vertical welding requires mastery over molten pool movement, with upward and downward techniques suited for material thickness and strength.

Overhead is the most challenging, demanding precise control to prevent molten metal from dripping. Recognizing these positions and codes guarantees you apply proper technique and maintain weld quality across applications.

Mastering the 3G welding position is often a key step before advancing to more complex welding challenges.

How Gravity Affects Weld Quality in Different Positions?

Understanding the basic welding positions and their codes sets the stage for mastering the impact of gravity on weld quality.

Grasping welding positions and their codes is essential for controlling gravity’s effect on weld quality.

Gravity directly influences molten metal behavior in each position, demanding specific control techniques.

In the flat position, gravity aids your puddle control, allowing faster travel speeds and superior bead consistency.

When welding horizontally, you must counteract gravity’s pull causing sagging by maintaining strict torch angles and slower travel.

Vertical welding requires precise manipulation: in vertical-up, you fight gravity to build fusion and penetration, while vertical-down demands speed to prevent excessive weld pool runoff.

Overhead welding challenges you most, as gravity pulls molten metal away, increasing the risk of defects like undercut and slag inclusion.

Mastery means adapting your technique to gravity’s force to ensure weld integrity across all positions.

Reducing power settings by about 10–15% compared to flat welding is essential for controlling heat input and maintaining a stable vertical weld puddle.

Welding Skill Progression: Starting With Flat Positions

You’ll almost always begin your welding training in the flat position because it offers the most manageable conditions for developing fundamental skills.

Gravity assists in maintaining puddle control, allowing you to focus on mastering travel speed, bead consistency, and electrode angle.

This position, commonly coded 1G or 1F, provides ideal visibility and ease. It serves as the foundation before progressing to more demanding orientations.

Skill Focus	Flat Position Advantage
Puddle Control	Gravity aids stability
Travel Speed Control	High productivity
Visibility	Excellent for beginners

Mastering flat welding builds confidence and precision. These skills are essential before moving on to horizontal, vertical, or overhead positions where gravity complicates weld pool management. Starting practice with consistent bead control in a controlled workspace is key to building strong foundational skills.

Pipe Welding Positions: 5G and 6G Overview

When working with pipe welding, you encounter unique challenges that demand advanced skills beyond those used in flat or plate welding positions. The 5G and 6G pipe welding positions test your versatility and control in complex orientations.

5G Position: The pipe remains fixed horizontally. You weld around it, adapting to changing angles. This requires consistent technique and precise control to avoid defects.
6G Position: The pipe is fixed at a 45-degree angle, forcing you to weld in flat, horizontal, vertical, and overhead positions all in one pass. This position demands expert-level skill and adaptability.
Applications: Both positions are standard in pipeline and pressure vessel work. They serve as critical qualification tests for welding professionals due to their complexity and high skill requirement.
Passing a 6G certification demonstrates advanced proficiency in multi-orientation, full-penetration groove welds and is considered one of the most challenging welding tests for pipe and pipeline qualification, especially important in industries like oil and gas.

Weld Pool Control Tips for Challenging Welding Positions

Mastering weld pool control is essential for success in challenging welding positions like horizontal, vertical, and overhead.

You need to maintain a consistent travel speed to prevent molten metal sagging or dripping.

Keep a short arc length to guarantee the puddle stays stable and avoids contamination.

Adjust your electrode or torch angle precisely, typically between 10° and 15° off vertical, to counteract gravity’s pull on the weld pool.

In vertical welding, use the vertical-up technique for better penetration and control, while vertical-down suits thinner materials.

For overhead welding, position your body to support steady hand movement and avoid excessive puddle volume.

Constantly monitor heat input, as overheating increases fluidity, making puddle control more difficult.

Reducing amperage and voltage from flat welding settings is crucial to limit puddle fluidity and avoid sagging in these positions, especially overhead, by maintaining proper heat management.

Frequently Asked Questions

What Safety Gear Is Essential for Overhead Welding Positions?

For overhead welding, you must wear a flame-resistant welding helmet with a proper shade lens to protect your eyes from intense arc rays and sparks.

Use flame-resistant clothing covering your arms and torso to guard against hot spatter.

Heavy-duty gloves protect your hands, while a respirator shields you from harmful fumes.

Don’t forget safety boots with steel toes and ear protection to prevent injuries from falling debris and loud noise during welding operations.

How Does Material Thickness Impact Position Choice?

Think of material thickness as the backbone guiding your welding position choice.

Thicker materials demand vertical-up welding for stronger fusion, letting you build layers steadily against gravity.

Thinner metals benefit from vertical-down or flat positions, speeding travel and reducing heat distortion.

Choosing the right position guarantees peak penetration and weld integrity, so you’re not just joining metal; you’re mastering the craft with precision tailored to thickness.

Which Welding Processes Are Best Suited for Vertical Welding?

You’ll find Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW), and Flux-Cored Arc Welding (FCAW) best suited for vertical welding.

These processes offer precise control over the weld pool, critical for counteracting gravity’s pull on molten metal.

Vertical-up SMAW and FCAW allow deeper penetration in thicker materials, while GMAW provides smoother bead profiles.

Mastering electrode or torch angles is essential to maintain weld quality in this demanding position.

Can Robotic Welding Handle All Welding Positions Effectively?

Yes, robotic welding can handle all welding positions effectively, but success depends on proper programming, tooling, and fixture design.

Robots excel in flat and horizontal positions due to easier access and stable weld pools.

Vertical and overhead positions require advanced control systems and precise torch manipulation to counteract gravity’s effects.

With sophisticated sensors and adaptive controls, you can achieve consistent, high-quality welds across all positions.

However, setup complexity and costs increase for challenging orientations.

How Do Environmental Factors Affect Welding in Different Positions?

You’ll find temperature influences weld pool fluidity. Wind disrupts shielding gas, and humidity causes porosity.

You’ll need to adjust heat input in colder environments and stabilize gas flow in windy conditions. Control moisture to avoid defects.

You’ll manage gravity’s role differently across positions, but environmental factors always demand vigilance.

Welding Positions Explained: From Flat to 6G

Mastering multiple welding positions means meeting material challenges with methodical might.

You’ll find flat starts foster fundamental finesse, while pipe positions like 5G and 6G demand disciplined dexterity.

Remember, gravity governs weld quality, so grasping its grip guides your technique toward targeted triumph.

By controlling the weld pool carefully and consistently, you’ll conquer complex conditions confidently. Stay sharp, stay steady, and steadily sharpen your skills to secure strong, seamless seams every time.
