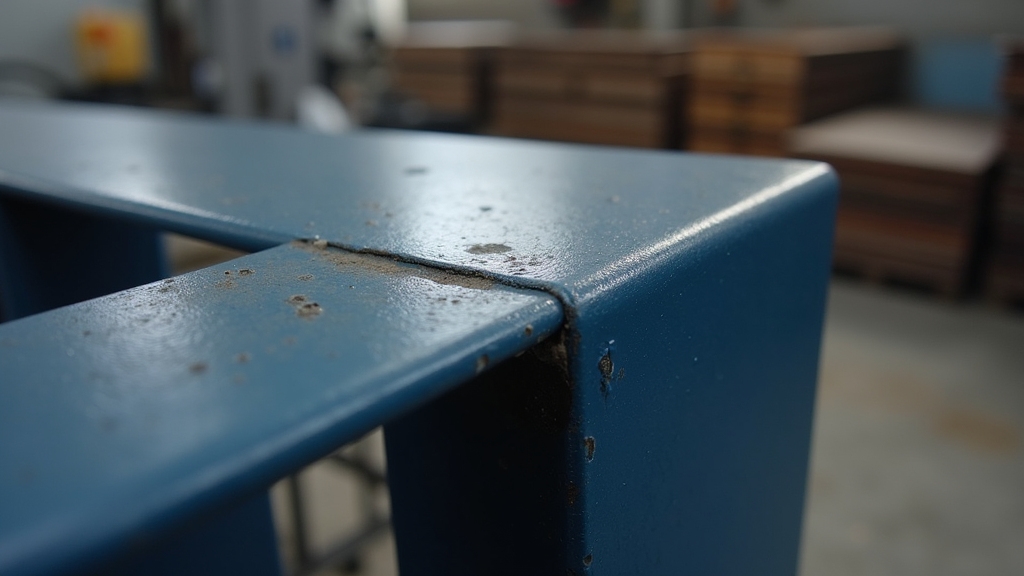

Can Powder Coated Steel Rust? Key Facts and Insights

Yes, powder-coated steel resists rust far better than bare metal, but it can still corrode if the film is breached.

Chips, scratches, thin edges, welds or poor pretreatment let moisture and chlorides reach steel and start underfilm corrosion.

UV, salt spray, abrasion and thermal cycling speed failure where coatings are thin or under-cured.

Proper prep, correct powder chemistry and controlled cure extend life. Continue for details on failure modes, inspection and repair.

Key Takeaways

• Yes — powder coating protects steel but will not prevent rust if the film is scratched, chipped, or otherwise breached.
• Poor pretreatment, contamination, or incomplete curing allows underfilm corrosion and premature coating failure.
• Edges, welds, seams, and formed bends commonly have thinner coverage and are most susceptible to rust.
• Coastal salt, high humidity, UV, abrasion, and thermal cycling accelerate coating degradation and localized corrosion.
• Proper cleaning, phosphate pretreatment, correct powder chemistry, controlled thickness, and documented curing greatly reduce rust risk.

What Powder Coating Is and How It Protects Steel?

Think of powder coating as a high-performance, dry-finishing system: finely ground pigment and resin particles are electrostatically charged and sprayed onto a grounded steel part.

They’re then baked at high temperature so the powder melts and chemically cross-links into a continuous, tough film.

You rely on electrostatic attraction for uniform deposition and thermal cure for fusion into a molecularly cross-linked matrix that outperforms liquid paint in hardness and durability.

You prepare the substrate by rigorous cleaning, alkaline wash, and conversion coatings (iron or zinc phosphate) to optimize surface chemistry and adhesion.

You control particle size, masking, and application method (electrostatic spray, fluidized bed, PTFE) to guarantee consistent thickness, coverage of edges and recesses, and resistance to mechanical and environmental wear.

A thorough pre-treatment sequence including sealant & drying and pure-water rinses is essential to prevent flash rust and ensure long-term adhesion.

Additionally, choosing the right coating materials and application methods helps maintain a snug fit between the powder and steel surface, enhancing protection and durability.

Why Powder Coated Steel Can Still Rust?

Powder coating does a great job at reducing corrosion, but let’s be real—it’s not perfect. If the coating gets chipped or scratched, or if it’s applied too thinly, that’s when the trouble starts. Those little imperfections become entry points for moisture and oxygen, which are just waiting to create issues. Proper surface preparation and coating thickness are critical to maintain the coating’s corrosion resistance.

Now, think about areas like edges, welds, and seams. These spots often don’t get the best coverage, so they can trap moisture and lead to problems like premature breakdown or underfilm rust.

And if you’re in a harsh environment—like somewhere with high humidity, salt, chemicals, or extreme temperatures—those issues can worsen pretty quickly.

It’s all about how those vulnerabilities can turn into active corrosion sites, and that’s something to keep in mind. Components that experience regular contact or abrasion will eventually expose the metal beneath, especially when coated with wear and tear.

Coating Damage Risks

Understand that powder coating greatly reduces corrosion risk but doesn’t make steel invulnerable. You must account for failures that let corrosion start beneath the film.

Improper surface prep or coating thickness leaves oxide entrapped or creates weak adhesion; that hidden rust then expands under the coating. Environmental and chemical exposures, such as moisture, incompatible solvents, or extreme heat, accelerate coating breakdown and enable water to penetrate pinholes and seams. Proper maintenance and inspection routines help prevent coating deterioration from progressing unnoticed.

Mechanical impact and abrasion create chips and cracks that expose bare metal and start rapid oxidation.

1. Surface prep failures: trapped oxidation and thin films permit sub-coating corrosion.
2. Chemical/environmental attack: solvents, salt, heat degrade the polymer barrier.
3. Mechanical damage: impacts produce openings for water ingress.
4. Pinhole/wear defects: microscopic paths allow persistent water to reach steel.

Regular inspections and prompt maintenance can catch small defects before they become major problems, because early detection lets you repair tiny breaches and prevent substrate rust.

Edge and Weld Weaknesses

After covering how coating failures let corrosion start beneath the film, it’s important to look at where those failures most often begin: edges and welds.

You should expect thinner powder buildup and more cracks at sharp edges because deposition is uneven and handling or bending induces mechanical failure. Regular maintenance and care routines, such as cleaning and conditioning, can help reduce surface degradation that leads to coating failure.

Welding removes or degrades coating, and post-weld heat alters surface chemistry and creates rough, spattered zones that resist uniform coverage.

Those microdefects, such as pinholes, pores, and crevices, trap moisture and salts, initiating localized corrosion that propagates under intact film.

Inspect edges and welds with holiday testing and visual checks. Applying specialized products designed to restore protective layers can improve longevity.

Mitigate risks by rounding edges, thoroughly cleaning and recoating welds, using flexible adhesion-enhanced powders, and addressing residual stresses to reduce crack formation.

Powder coating also usually requires a higher up-front investment in equipment compared with painting.

Environmental Exposure Effects

Because outdoor conditions constantly challenge the coating, powder-coated steel can still rust when environmental factors exploit even tiny defects in the film.

You should assess how humidity, salt, chemicals, UV, and thermal cycling interact with coating flaws.

Moisture and salt accelerate corrosion at chips; UV and chemicals degrade binder, causing chalking and erosion.

Freeze-thaw and expansion create micro-cracks; abrasive particles abrade thin spots. Proper heat management during coating and welding can also influence long-term corrosion resistance.

Surface prep and uniform thickness statistically reduce failures, but imperfect cleaning or application leaves vulnerable areas.

Monitor and maintain coatings, especially edges and welded zones.

Consider supplementary barriers like galvanizing or UV-stable powders.

1. Coastal salt spray: accelerates corrosion at minute defects.
2. High humidity: promotes moisture ingress through micro-cracks.
3. UV/chemicals: degrade binder, causing chalking and erosion.
4. Thermal cycling: induces stress, leading to coating separation.

Professional application and proper curing help ensure improved adhesion.

Common Points of Failure in Powder Coatings

You know, when it comes to powder coating, the edges and welds are usually where things start to go wrong. It’s not uncommon to see thinner coverage in these areas, which can lead to some real issues. Wearing protective gloves during welding can help prevent damage to these vulnerable spots.

Those thin spots and seams, especially when they experience mechanical impacts or abrasion, can become gateways for moisture and oxygen. And guess what? That’s how corrosion begins. And powder coats applied to thin, rolled steel plate can be particularly prone to deep pitting.

So, it’s super important to keep an eye on those areas. Inspect them regularly and take action if you notice anything off. Trust me, addressing these vulnerabilities early can make a huge difference since they’re known to contribute to a lot of premature coating failures.

Edge and Weld Thinning

Inspect edges and welds closely, because powder coatings commonly thin or become incomplete at these locations due to a combination of coating behavior, geometry, and surface condition.

You’ll see sub-50 µm thickness at sharp edges and weld beads because powders have limited leveling and often shrink during curing, pulling back from edges and creating microcracks. Applying heat evenly and controlling drying conditions can help mitigate excessive shrinkage and improve coating coverage at these critical points.

Heat-affected zones change surface energy, reducing powder adhesion, while weld spatter, slag, oils, and oxides physically block wetting.

Electrostatic concentration can increase buildup nearby yet still leave the ultimate edge thin.

1. Measure thickness at beads/edges; expect thinner readings and map defects.
2. Inspect for weld spatter/slag and remove mechanically; verify pretreatment acceptance.
3. Use powders with fine particle size and good flowability for edge coverage.
4. Control humidity and cleanliness to prevent clumping and pinholes.

Maintain booth filters and control humidity to below 50% to minimize contamination and pinholes. Wearing shrinkable gloves during inspection and handling can improve safety and dexterity without compromising coating integrity.

Mechanical Damage Points

When mechanical forces act on powder-coated steel, they create localized failure points where the coating’s protective continuity breaks and corrosion can start. You should focus on impacts, abrasion, deformation, and stress concentrations because these mechanisms produce cracks, chips, pinholes, and wear that expose bare metal. Gloves designed for welding provide protection against such mechanical damage, illustrating the importance of specialized materials in preventing wear.

You’ll see cracking from thermal or mechanical stress and impacts that deform underlying steel, initiating interfacial microcracks and eventual detachment. Abrasion and repeated contact thin coatings at edges and protrusions, reducing barrier integrity. Proper material selection and construction, such as using heat-resistant leather, can serve as a model for enhancing durability in coating applications.

Poor adhesion, contamination, or overbaking increases chipping and interlayer failure, while trapped gases cause blistering, cratering, or pinholing that open corrosion pathways. Prevent by selecting flexible, properly cured films, controlling thickness, ensuring pretreatment, and minimizing post-coating impacts. Urethane top coats are often used because they provide UV stability.

Environmental Factors That Accelerate Corrosion

Although coated steel often looks durable, the environment around it dictates how quickly corrosion will take hold. You should assess four primary external drivers that determine corrosion kinetics and coating performance.

1. Humidity and Rainfall: RH above 80% and frequent wetting create continuous electrolyte films. Time-of-wetness predicts corrosion onset and coating degradation. Increased wet–dry cycling also drives faster deterioration by repeatedly forming and evaporating thin electrolyte films, which control electrochemical activity and promote corrosion galvanic-current variability.
2. Chloride Exposure: Coastal salt spray and deposited chlorides increase electrolyte conductivity. They breach films and sustain localized corrosion even without direct seawater contact.
3. Temperature Regime: Higher temperatures accelerate electrochemical rates and thermal cycles promote condensation-driven corrosion.
4. Pollutants and pH: SO2/NOx and ammonia acidify moisture films, intensify oxidation, and foster pitting and crevice corrosion in industrial atmospheres.

How Coating Quality and Thickness Affect Durability?

Because the coating is your first line of defense, its thickness and formulation directly determine how long the steel stays protected. A uniform, adequately thick film limits moisture and chloride ingress, resists mechanical damage, and delays underfilm corrosion.

You should aim for thickness sufficient to block water and abrasives. Thicker films statistically reduce permeability and chip rates, preserving both structure and finish. However, excessive thickness can induce brittleness or adhesion loss, so balance is critical.

Choose powder chemistry to match exposure. Thermoset epoxies and polyesters offer different corrosion and UV resistance profiles, and consistent supplier quality guarantees predictable performance.

Finally, optimal curing and cross-link density produce a hard, coherent matrix that maximizes abrasion and chemical resistance over time. Stainless steel, by contrast, provides inherent resistance because of its protective chromium oxide.

Pretreatment, Primers, and Application Best Practices

Start by ensuring the steel is chemically and physically prepared: clean, dry, and free of oil, grease, mill scale, and any visible rust before you apply powder.

Use mechanical (blast) or chemical/phosphate pretreatments to guarantee adhesion. Incomplete cleaning creates initiation sites for corrosion.

Apply a primer when edges, high corrosivity, or thin coverage are concerns. Epoxy-polyester primers add thickness and seal vulnerable geometry.

Control application and cure: electrostatic spraying, measured film thickness, and oven cure per spec produce uniform, cross-linked films that resist moisture ingress.

1. Verify surface cleanliness and mask non-coated areas.
2. Select substrate-appropriate primer for corrosivity category.
3. Monitor film thickness and evenness during application.
4. Follow specified cure profile and document process parameters.

Inspecting and Detecting Hidden Rust Under Coatings

To uncover hidden rust under powder coatings, you need systematic inspection and targeted testing that combine visual assessment with accelerated corrosion and electrochemical measurements.

Begin with routine visual checks for blistering, filiform worm-like trails, scribe creep, and edge rusting after defined intervals (e.g., 250-hour salt spray).

Use crosshatch adhesion, mandrel bend, and MEK rub tests to reveal bond failures, flexibility loss, or under-curing that permit corrosion initiation.

For laboratory confirmation, run ASTM B-117 or cyclic protocols (GM-14872) with scribed panels to quantify rust creep and compare against EN 13438/GSB-ST benchmarks.

Complement with electrochemical impedance spectroscopy in 3.5% NaCl to measure coating impedance changes pre- and post-exposure.

Correlate results to surface profile and substrate prep records for root-cause analysis.

Repairing Chips, Scratches, and Corrosion Spots

After you’ve identified hidden rust and coating failures through inspection and testing, you’ll need a targeted repair approach that restores barrier protection and adhesion rather than just covering defects.

After detecting hidden rust and coating failures, use targeted repairs that restore barrier protection and adhesion—not just conceal defects.

You start by cleaning and preparing the damaged zone: pressure-wash or solvent-wipe to remove contaminants. Then use mild abrasives or 220-grit sanding to expose sound metal and feather edges for smooth changes.

Choose repair method by damage depth: pens for micro-chips, fillers for deeper voids, full strip-and-recoat for extensive corrosion. Control application and cure to guarantee adhesion and durability. Proper pretreatment and surface preparation are crucial to long-term performance, including cleaning, rinsing, and drying to prevent flash rust and ensure adhesion to the substrate (surface preparation).

1. Clean: pressure wash, phosphating or solvent wipe.
2. Profile: sand to 220 grit, remove oxides, feather edges.
3. Repair: pen, filler, or full strip based on damage.
4. Finish: match topcoat, cure, and clear coat.

Comparing Powder Coating to Other Corrosion Protections

While powder coating gives you a thick, tough barrier that resists chemicals, abrasion, and UV better than most liquid paints, it relies entirely on an intact film to prevent rust.

When chips or scratches expose bare steel, the protection stops and corrosion can spread.

You should weigh that against galvanizing, which sacrificially protects steel even when damaged, and zinc plating, which offers thinner barrier protection but can act sacrificially and serve as a primer under powder.

Powder’s typical thickness (~80 μm+) yields superior sealing and aesthetics versus liquid paints, but it won’t self-heal.

Combining zinc undercoats with powder coating yields both barrier and sacrificial protection at added cost and complexity.

Choose based on exposure, mechanical risk, and maintenance capacity.

Adding a thin zinc plating layer before powder coating can give you sacrificial protection under the polymer shell.

Frequently Asked Questions

Can Powder Coating Be Applied Over Existing Rust?

No, you shouldn’t apply powder coating over existing rust. You must remove all corrosion via blasting, wire wheeling, or chemical rust removers before coating.

Otherwise, adhesion fails and rust continues under the film, causing blistering and cracking. After cleaning, you should degrease and apply a rust-inhibitive primer if suitable.

Then, topcoat. Follow environmental controls and maintenance to guarantee coating longevity and prevent premature corrosion.

Does Powder Coating Affect the Steel’s Load-Bearing Strength?

You won’t lose load-bearing strength: studies show duplex systems can protect steel 15–25 years without weakening the substrate.

If you properly remove rust, maintain at least 0.063″ thickness, and use professional pretreatment plus powder primer/topcoat, the coating preserves strength and shear performance (>10 N/mm² in bonded joints).

Improper prep or aggressive blasting on thin parts can reduce section thickness and compromise capacity, so follow specs and standards.

Can Indoor Powder-Coated Items Rust in Basements?

Yes, indoor powder-coated items can rust in basements if moisture reaches the steel beneath the coating.

You’ll reduce risk by ensuring professional pretreatment, using primers, maintaining low humidity and good ventilation, and inspecting for chips or micro-cracks.

Avoid harsh chemicals and abrasives, clean with mild pH-neutral cleaners, and promptly repair any damage.

With those controls, the powder coat will usually prevent corrosion, but breaches allow rust to start.

Are There Health Risks From Rust Under Powder Coating?

Like a hidden rot behind wallpaper, yes, rust under powder coating can pose health risks.

You’ll face mainly irritation: skin contact with rust or degraded powder can cause rashes or sensitization.

Dust or fumes from grinding, heating, or welding can irritate lungs and carry toxic metals or VOCs.

You should avoid inhalation, use ventilation, PPE, and inspection/testing to prevent chronic exposure and structural failure risks.

How Long After Coating Should the Item Be Used Outdoors?

You should wait until the powder coat is fully cured and cooled per the manufacturer’s specs, typically 10–30 minutes at curing temperature plus cooling time, before outdoor use.

Delaying use until you verify full cure and inspect adhesion reduces rust risk.

In high-humidity or coastal environments, follow longer cure and inspection protocols.

Consider super-durable and UV-resistant powders, and schedule routine maintenance to preserve coating integrity and corrosion resistance.

Inspect and Protect: Stop Rust Before It Starts

You can still see rust beneath powder coating, but when the system’s properly specified and applied, it’s like putting a weatherproof jacket on steel. It’s mostly protective, not invincible.

You’ll need to inspect seams, edges, and damage-prone areas regularly. Favor good pretreatment, adequate thickness, and controlled environments to slow corrosion.

When failures occur, prompt, evidence-based repair and touch-up restore protection and extend service life. Don’t ignore early warning signs.
